Roof Rack To Suit JK Wrangler Unlimited

5 reviews Write a Review
32.00 KGS

Finally a lightweight yet strong Roof Rack for a JK Wrangler that works with your hard top and soft top. No drilling - installation completely bolt on. Made from Steel and Aluminium it is a well balanced yet strong Rack that is designed to be easily flipped back to allow you to take your soft top up or down (no tools required).

In standard form this Rack allows your freedom panels to be removed on your hard top while still enjoying that open air feel.


  • Vehicle height increase of 190mm from the hard top
  • Front light bar hoop mounts to A pillars and is made from Steel and powder coated Textura Black (can be sold separately)
  • This Roof Rack mounts extend much further up the A pillar than others to prevent excessive flexing when loaded up
  • Made from thick 3.2mm steel the front hoop is twice as thick and strong as competitors
  • Front hoop can mount LED light bars underneath or 4 spot lights above. Optional brackets supplied for a 50" LED light bar under the top hoop and above the windscreen
  • Rear hoop made from Steel and supported by Roof Rack pivot points which house heavy duty 4WD Leaf Spring bushes. These bushes soak up the vibration and movement experienced by the Rack during heavy off road use or corrugated roads. Designed to move with the vehicle to prevent cracks in the Rack
  • Top Roof Rack made from 6061 aluminium tube 32mm x 3mm thick
  • Roof Rack area is lined with expanded Aluminium mesh which allows even small items to be stored up top
  • Proudly made in Australia
  • Steel components are powder coated in Textura Black for long lasting corrosion resistance
  • Aluminium components are chromated then powder coated in Textura Black for unmatched powder coat adhesion
  • Light weight system. Entire kit adds only 34kg to your vehicle, with top rack only weighing 13kg (excluding options)
  • Fits with all Wrangler soft tops and hard tops
  • Folds back in under 2 minutes with no tools
  • No drilling. Installation is completely bolt on
  • Rated to 125kg dynamic loading
  • Rated to 250kg static loading
  • Can mount to existing Steel Rear Bumpers, or with added chassis brackets to other aftermarket bumpers and factory plastic bumper (see options above). Confirmed with the following Rear Bumpers, Uneek 4x4, Mopar, ARB (old style no tyre swing out) and Kaymar
  • Rack works with Safari and AEV snorkels
  • Kit includes chassis brackets for factory bumper

Options include:

  • Bolt in sun roof panel for a full length Rack (can be added here)

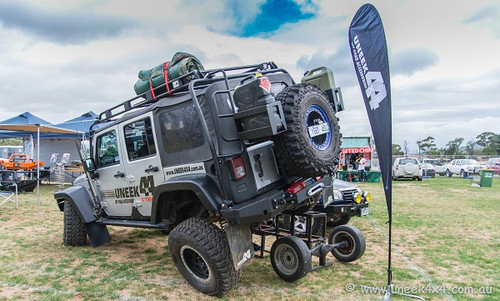

  • Rear ladder (can be added here)
  • LED light bar mounts (can be added here)
  • Bolt on Ladder Mount
  • LED light bar mounts
  • Bolt on Shovel and Axe Mounts (quick fists)
  • Bolt on Hi-Lift Jack mount (quick fists)
  • Full length capabilities (sun roof panel)
  • Cross tubes available for roof top tents
  • Wind deflector available (can be added here)

5 reasons to choose Uneek 4x4's Roof Rack for your JK Wrangler

1. Uneek Racks are made from thicker Steel where it counts with our front and rear hoops being 3.2mm and 1.6mm. Aluminium is used up top so it's actually lighter and stronger than the rest

2. Uneek Racks are welded at the base of A pillar and up top of A pillar. Areas not having these extra welds can cause the Rack to hit the windscreen when fully loaded on rough roads

3. Uneek Racks do not use pads against the body. At Uneek it's understood the front is body mounted and the rear is chassis mounted, to restrict movement and uses 4WD suspension bushes to soak up these movements

4. Uneek Racks can be used with hard top, soft top or no top

5. Uneek Racks require no tools to tilt it back

This Rack is a step above the rest with a combination of Steel and Aluminium. All mounting points are tough steel where it counts.

Fitting time: 1-3 hours

Fitting difficulty: 4/10


JK Roof Rack Fitting Instructions

5 Year Warranty

5 Reviews

  • 5
    Best choice in roof rack

    Posted by Nick Cooper on 27th Dec 2017

    We took a long time in choosing the roof rack, but after seeing Dave’s gear it was an easy choice. Especially the tilting function to swap out roofs and panels. The 4 bolt system makes it easier to remove when not needed to clear low ceiling heights. Mounted easy assembly was a breeze. Maybe center punch your rear bars so when you buy the rack you just need to drill on the marks. Great finish and well packaged when arrived. Easy 2 hrs to assemble and install with a pistol drill ans spanner’s. Great job guys.

  • 5

    Posted by mark on 11th Nov 2015


  • 5
    JK Wrangler Unlimited Roof Rack

    Posted by John Mollison on 12th Aug 2015

    I am extremely happy with the look and finish of my roof rack and in the month that it has been fitted I have received plenty of positive comments. It is definitely strong enough to walk around on whilst tying down. The fitting instructions are clear and easy to follow. My only small criticism is that some powder coating on the front bar near the mounting holes was a little poor. This rack suits a Wrangler perfectly.

  • 5
    Great Roof Rack

    Posted by Anthony on 26th Jul 2015

    Recently fitted the roof rack to my JK Wrangler Unlimted. Fitted it myself in about 4 hours. Very pleased with the product. The only hard bit was installing the bolts where the snorkel bracket is. I have just returned from a 700 km return trip to Jim Jim and Twin falls in Kakadu with no noises coming from the rack. I have 2 ex army boxes and a awning hanging off it. Great product guys. Thanks Anthony

  • 4
    Love this set up

    Posted by Ben on 6th Jan 2015

    Probably one of the best rack systems getting around…and I did about a year of looking. Expensive…but you get what you pay for and what you get hear is a far superior model to the cheaper options floating about. It's rusting in places after only a few months, but thats life and the fact I got it sent up from Vic to the Gold Coast didn't give it the most gentle stet in life. Nothing a bit of spray paint can't fix. I've had them loaded up with five kayaks and other gear and bounced around the tracks around the Nymboida river and they held up great. Those bolts on the bottom of the rack where it attaches to the rear hoop are a pain in the arse to install, but apart from that pretty easy to put together. Cheer's guy's
